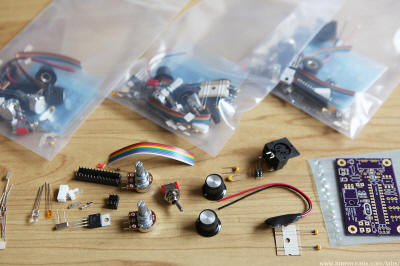

MIDI DRSSTC Interrupter v1.1 kit Limited Run (Obsolete - See new Dual MIDI Controller for sale)

>> See new gen 2 MIDI Controller here.

Features

The MIDI DRSSTC Interrupter v1.1 is a polytone general purpose MIDI interrupter based on the open-sourced oneTesla MIDI interrupter. It runs on a single Atmega328 microcontroller and is designed for optical output, but can also interface directly with most DRSSTC via a 5V enable signal. This controller comes with the following features:

• Two modes - standalone interrupter mode or MIDI mode
• Convenient power input via 9V battery (or any 7 to 12V voltage source)
• MIDI input via a standard DIN-5 MIDI connector with opto-isolation
• Generic output capable of driving standard 1000um plastic fiber or ST 62.5um fiber optic among others
• Frequency variable and Pulse width variable (10 to ~135us on time)
• Allows for installation of momentary switch
• Power and Transmit signal LEDs
• Tiny 68 x 44mm footprint
• User programmable via standard 6 pin ISP jack
• 2-tone Polyphony MIDI with velocity sensing
• Gold plated contacts

I have tested essentially the same version of this interrupter extensively on various coils including a small 220kHz DRSSTC 1, a ~110kHz  DRSSTC 2 and a larger ~70kHz DRSSTC 3 with excellent results.

This product has been replaced with my next generation controller and is no longer available and there will be no further production or development.

For more information about the newer dual-chanell MIDI Controller, please head here.

---
